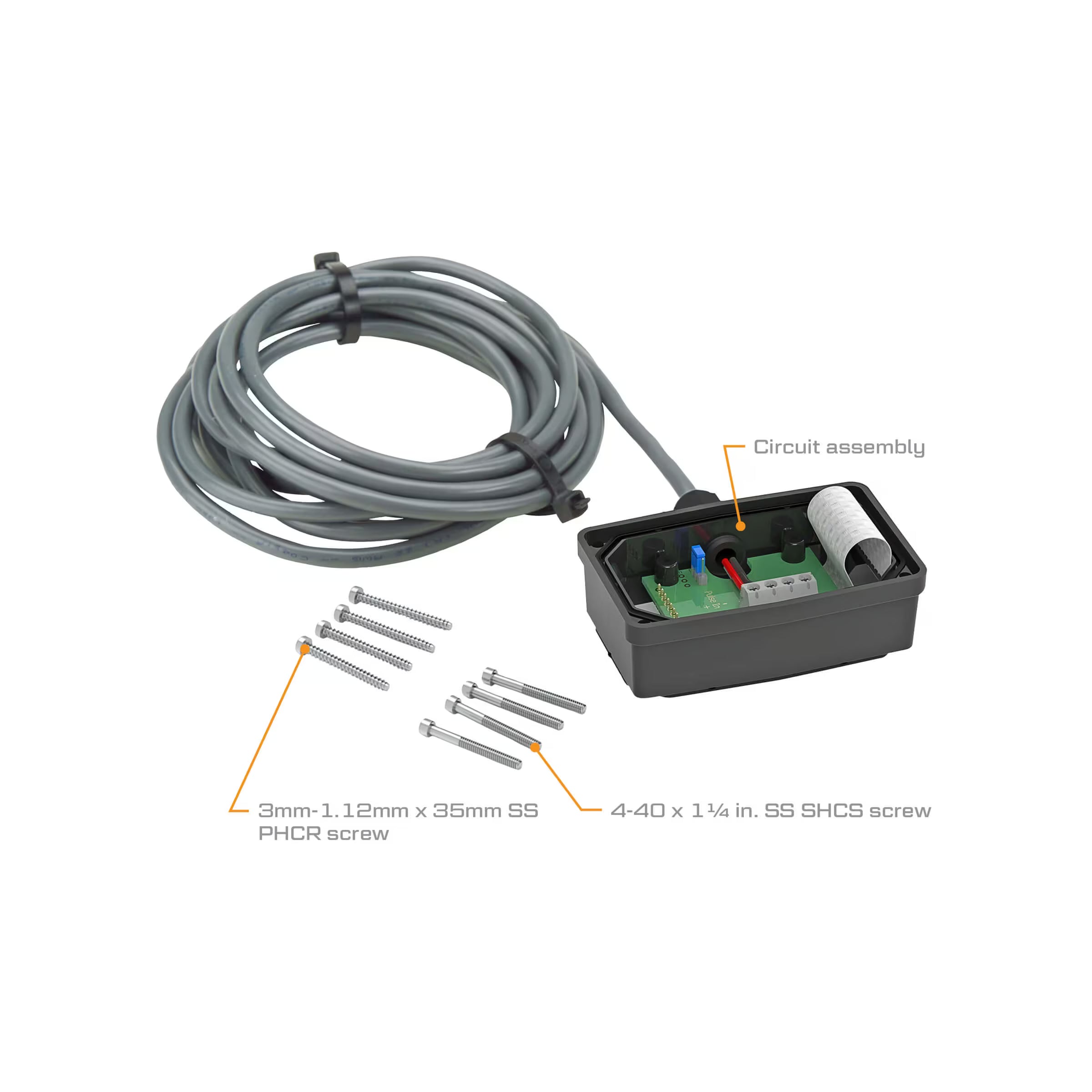

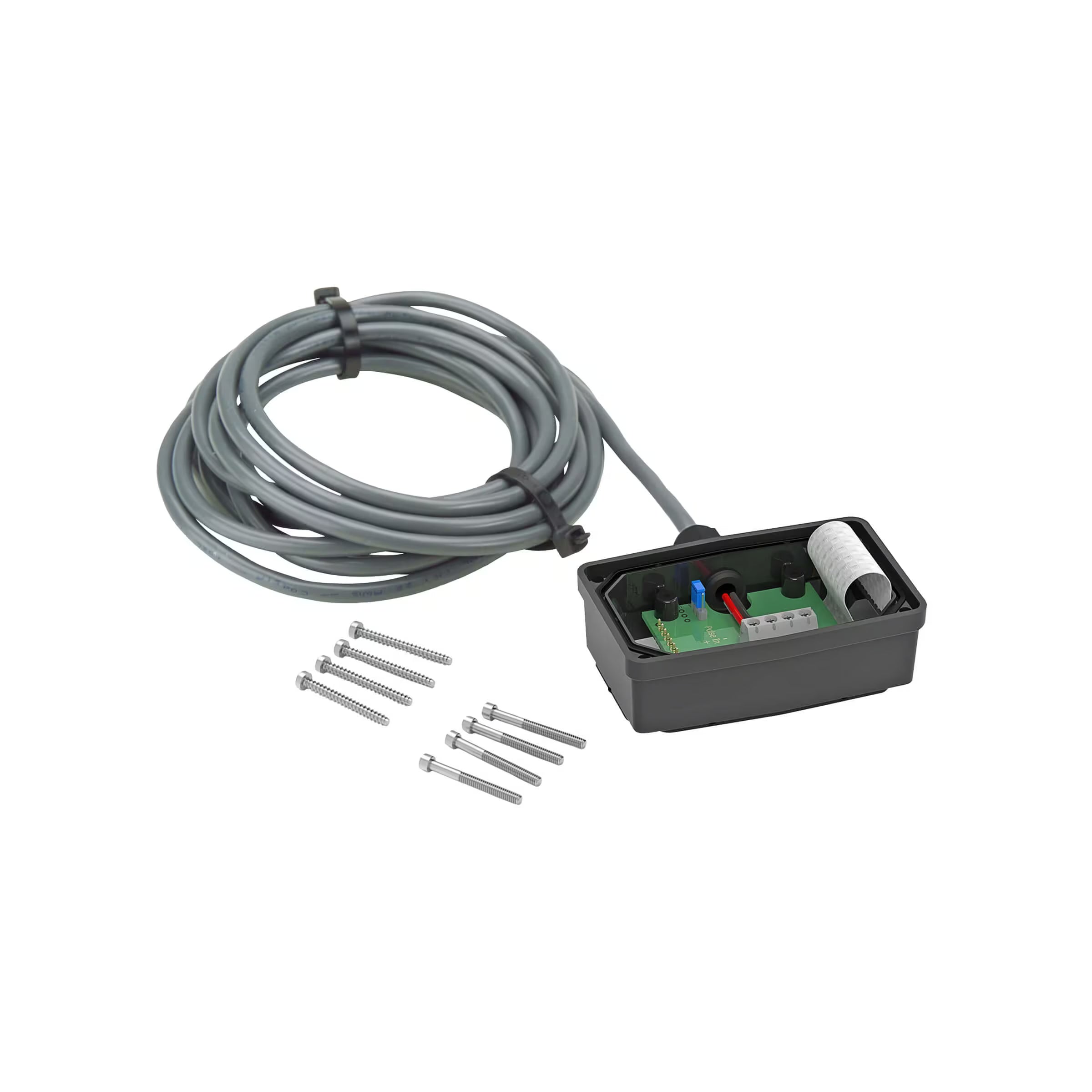

Combine the FLOMEC® 4-20mA Module with a turbine meter and display electronics (see QUICK START GUIDE) to provide an industry-standard analog output along with a discrete output for connection to a wide variety of chart recorders, display equipment, and process control equipment. This module outputs an analog signal which is directly proportional to the frequency of the turbine meter's digital output. With some simple adjustments, you can scale the module to represent whatever range is desired. The kit comes with circuit assembly, enclosure, screws, and 10 feet of cable.
NOTE: This module is not FM Approved. Therefore, using this module with an approved metering system voids FM Approval.
This module requires an input power of 8-32 volts DC (24 VDC is recommended).

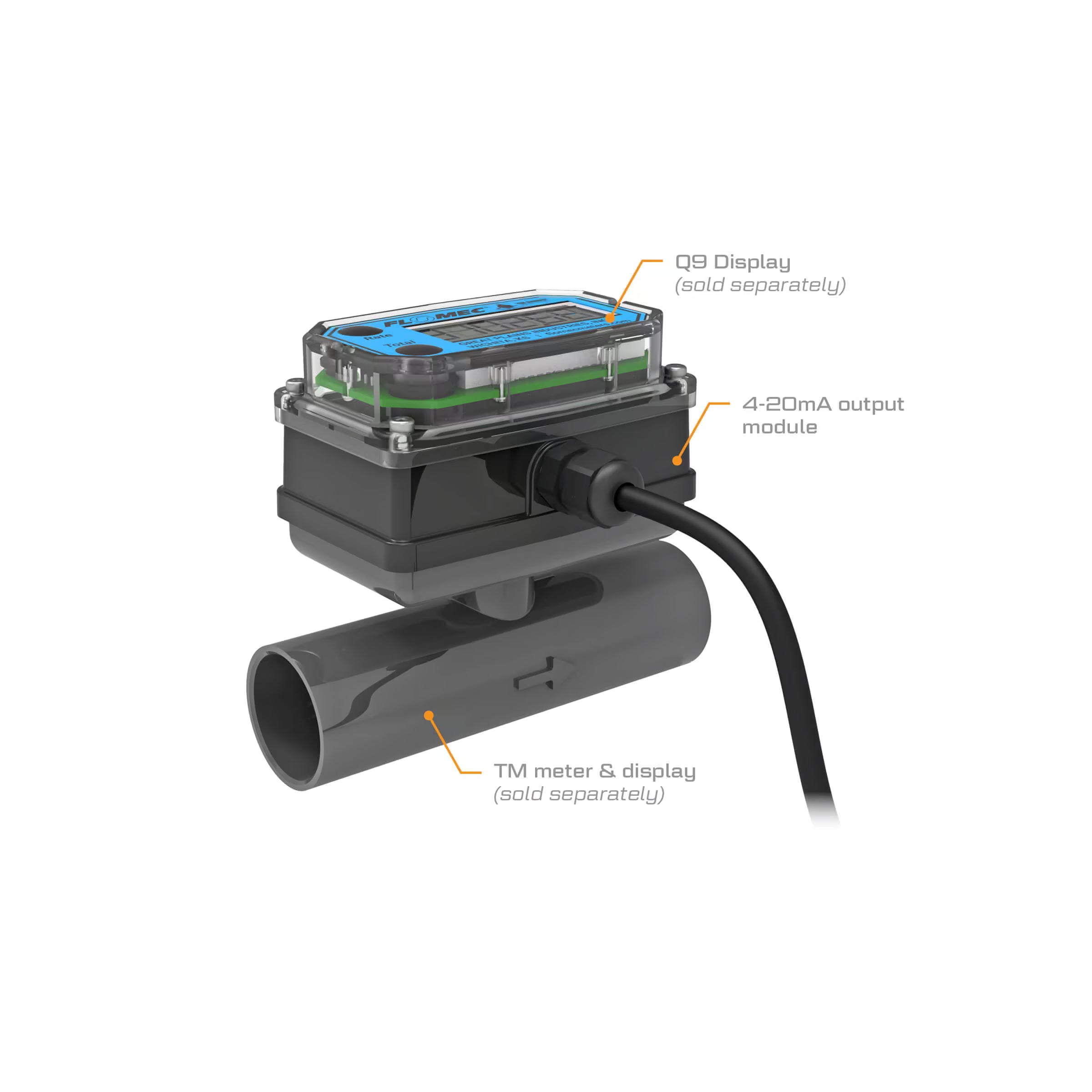

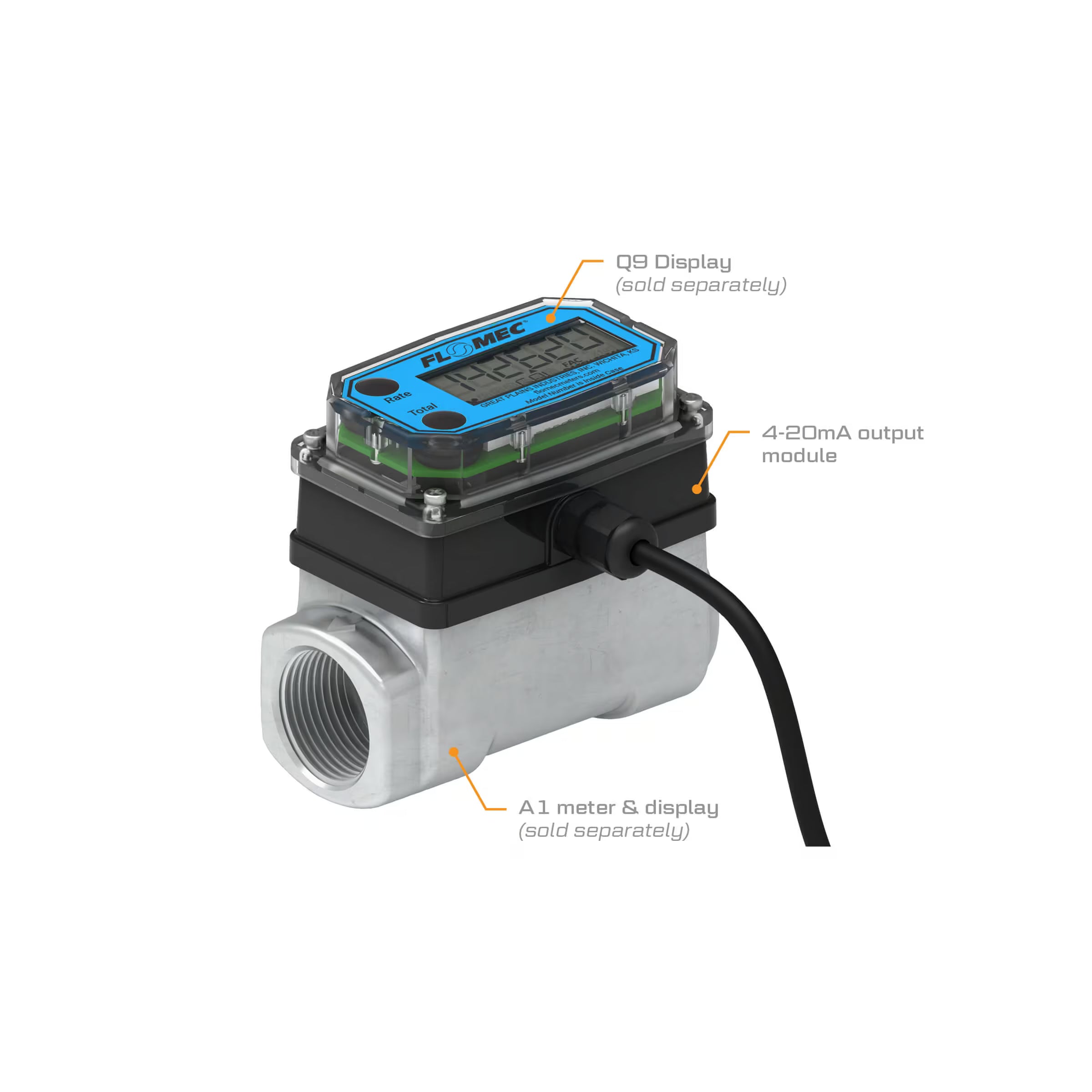

This module is designed for use with FLOMEC turbine meters that are equipped with the Q9 display option. The 4-20mA module can be field calibrated through the configuration menu options on the Q9 display.

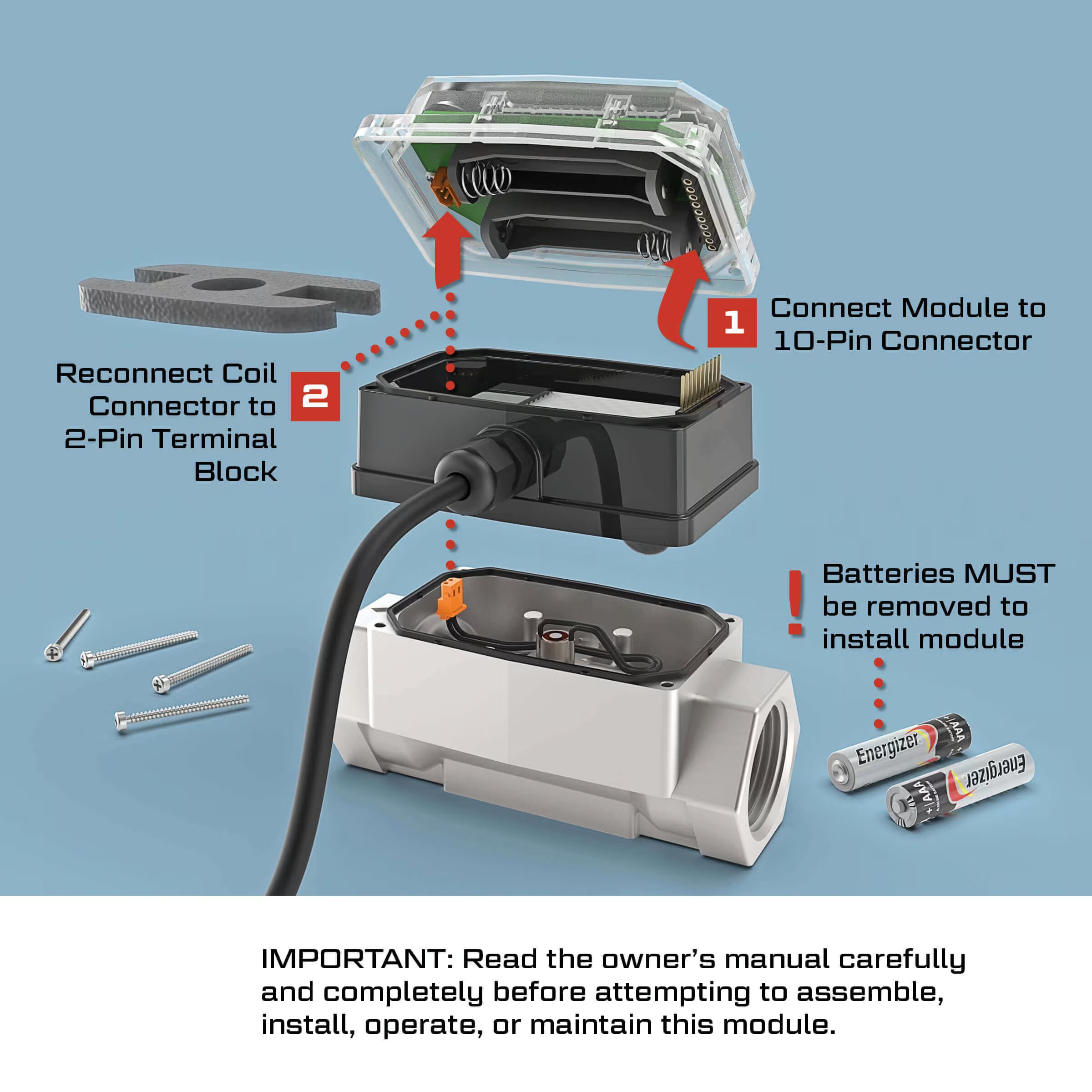

IMPORTANT: Read the owner’s manual carefully and completely before attempting to assemble, install, operate, or maintain this module.
