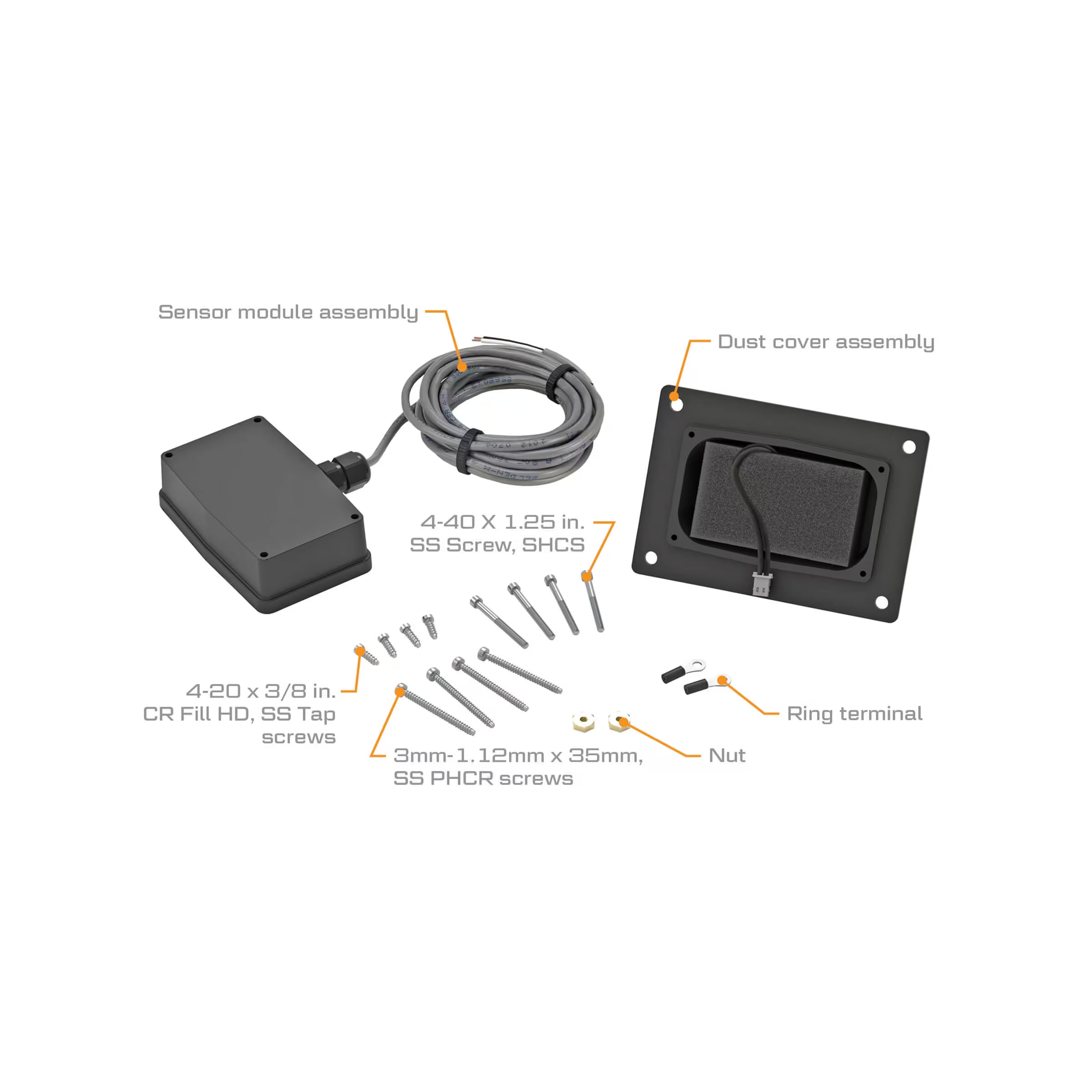

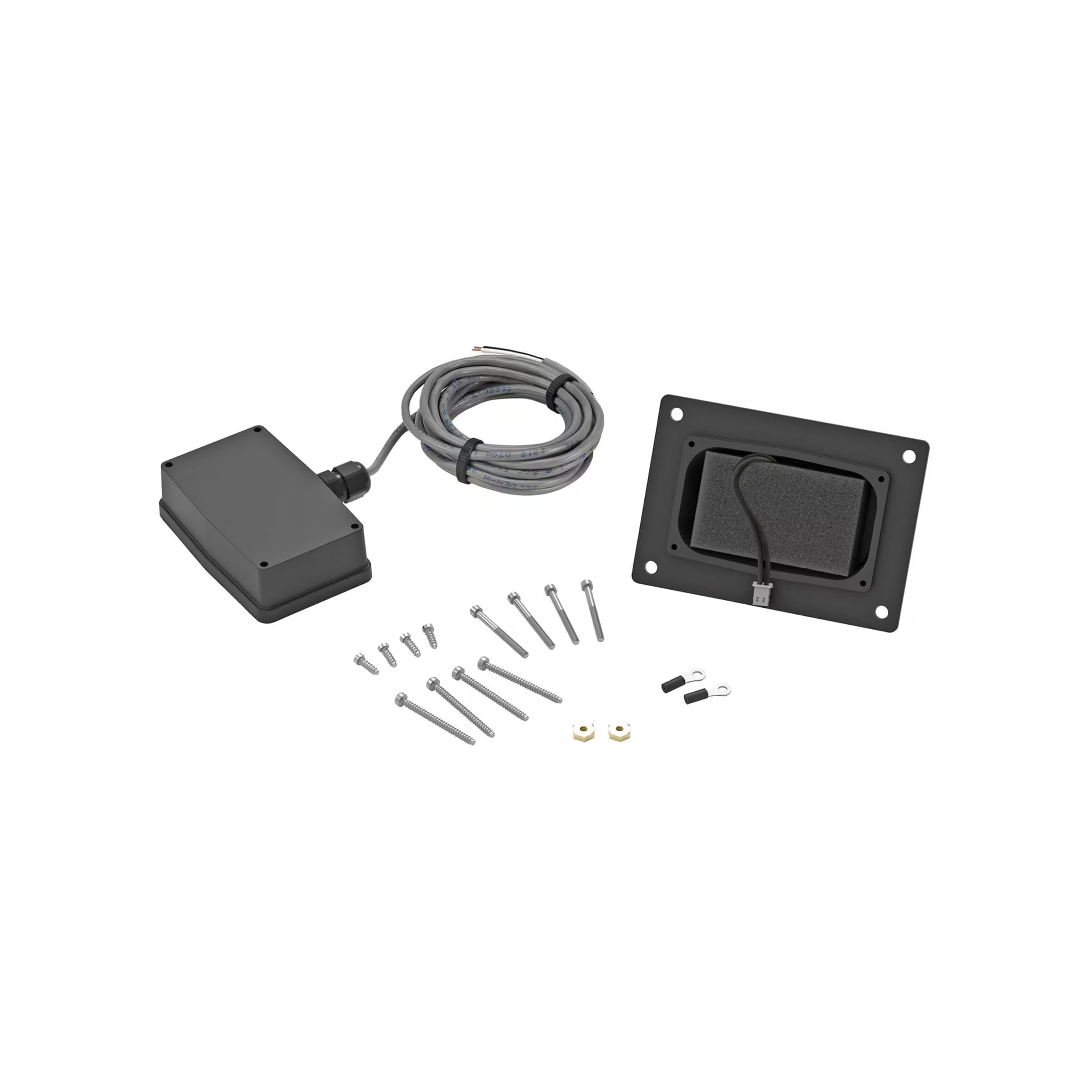

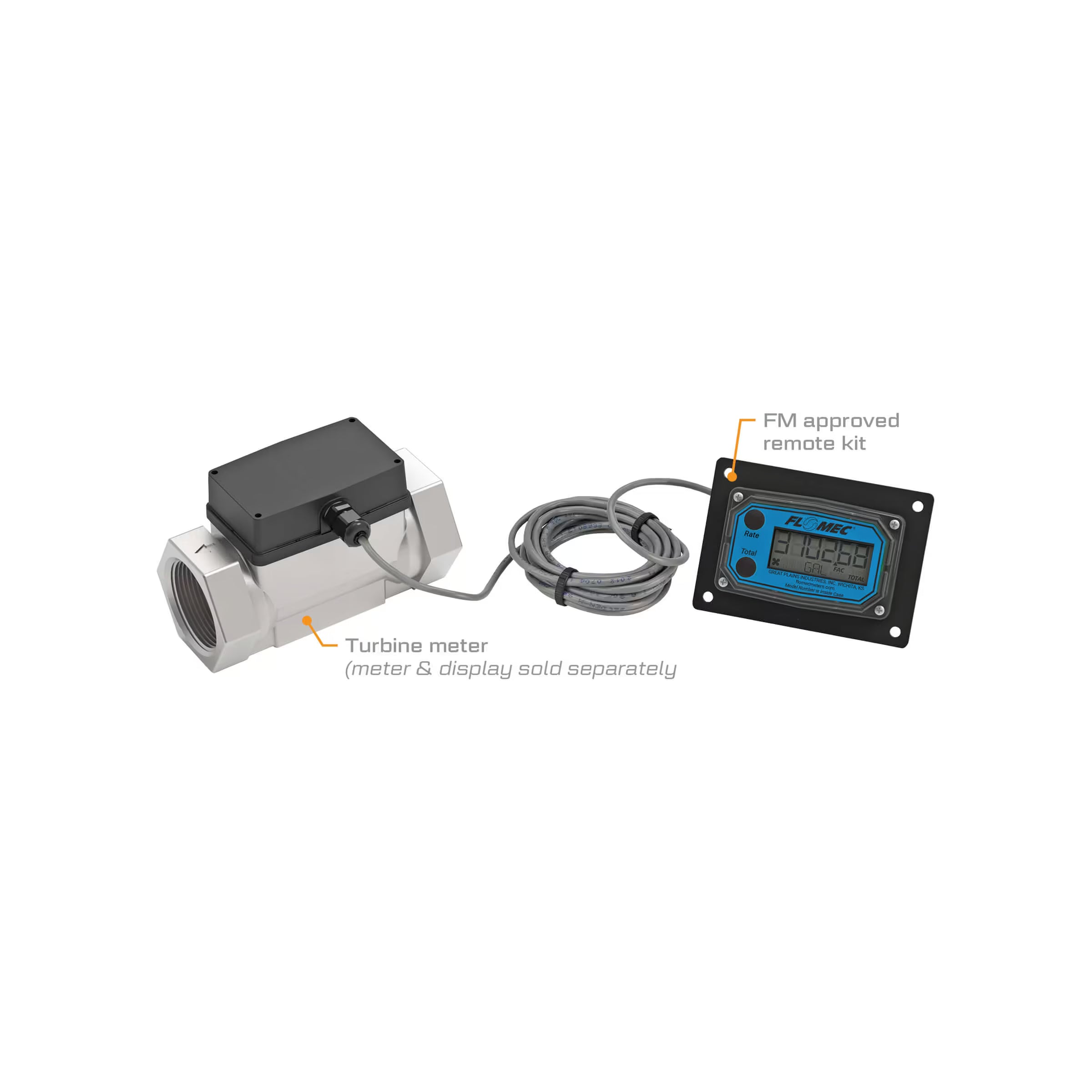

The Factory Mutual (FM) Approved Remote Kit Assembly modifies FLOMEC® electronic digital meters for applications in specialized situations including remote indication and high or low fluid temperature metering applications. This kit provides the versatility of panel mounting of the LCD readout up to 100 feet (30 meters) from the turbine. This kit consists of a sensor module, a dust cover assembly, and 10 feet (3 meters) of cable. Requires a complete meter with a Q9 display.
NOTE: To maintain the Factory Mutual Approval of this kit it must be installed in accordance with the instructions given in the owner's manual. It must also be used with a FLOMEC Factory Mutual Approved meter. When the installation is complete, the Factory Mutual decal should appear on the turbine, sensor, and dustcover. Installing this kit onto a non-FM-approved meter assembly will not make the assembly FM Approved.
NOTE: To retain Factory Mutual Approval of this kit, use only Belden Cable #9501, 2 wire shielded.
SPECIFICATIONS
Magnetic Pickup: 1.3k Ohm, 90mH
Signal Type: Low Amplitude Sine Wave
Voltage: Peak to Peak, 10 mV to 500 mV
Frequency: 11 to 608 Hz
Cable: 10 ft. (3 m), 2-conductor shielded, Belden #9501
