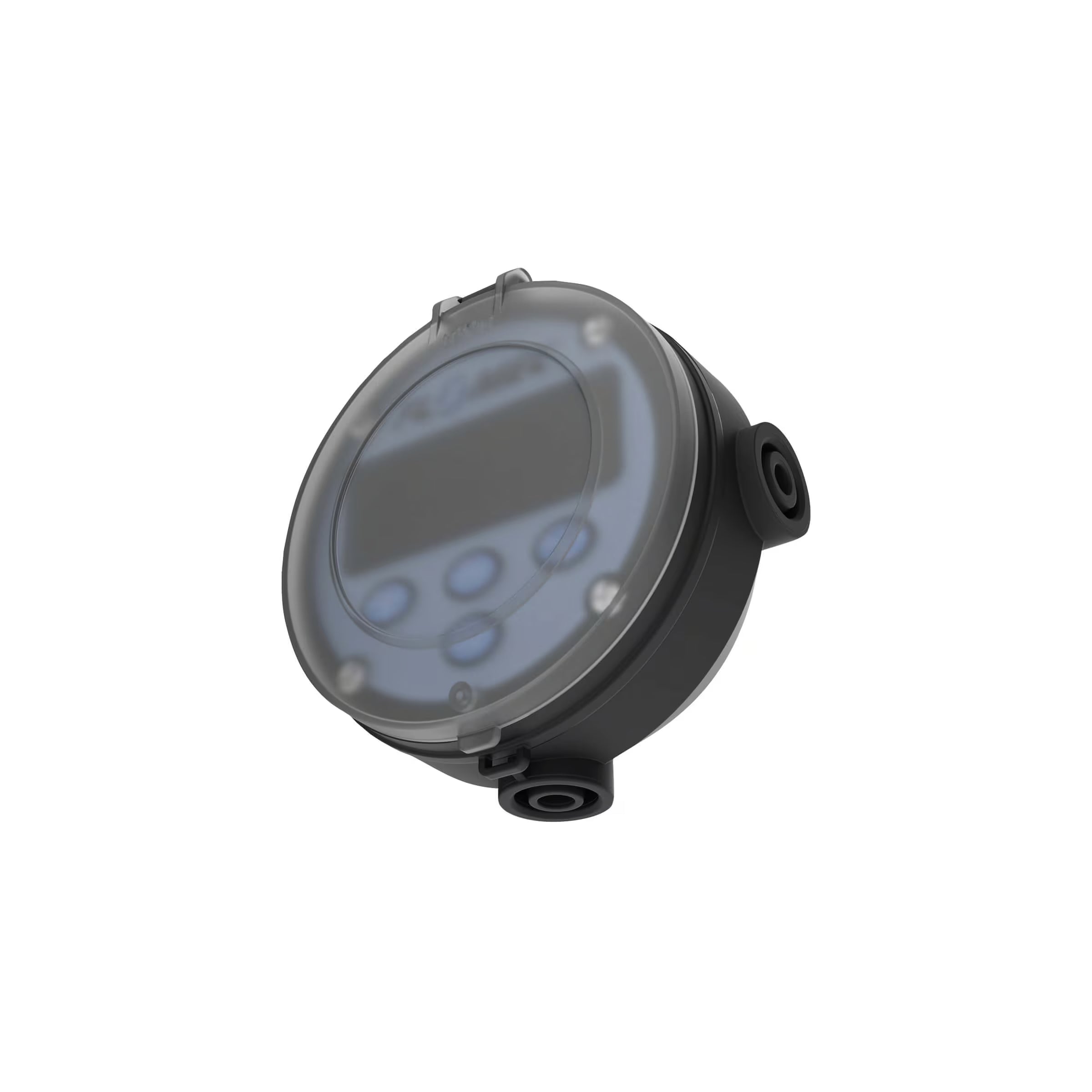

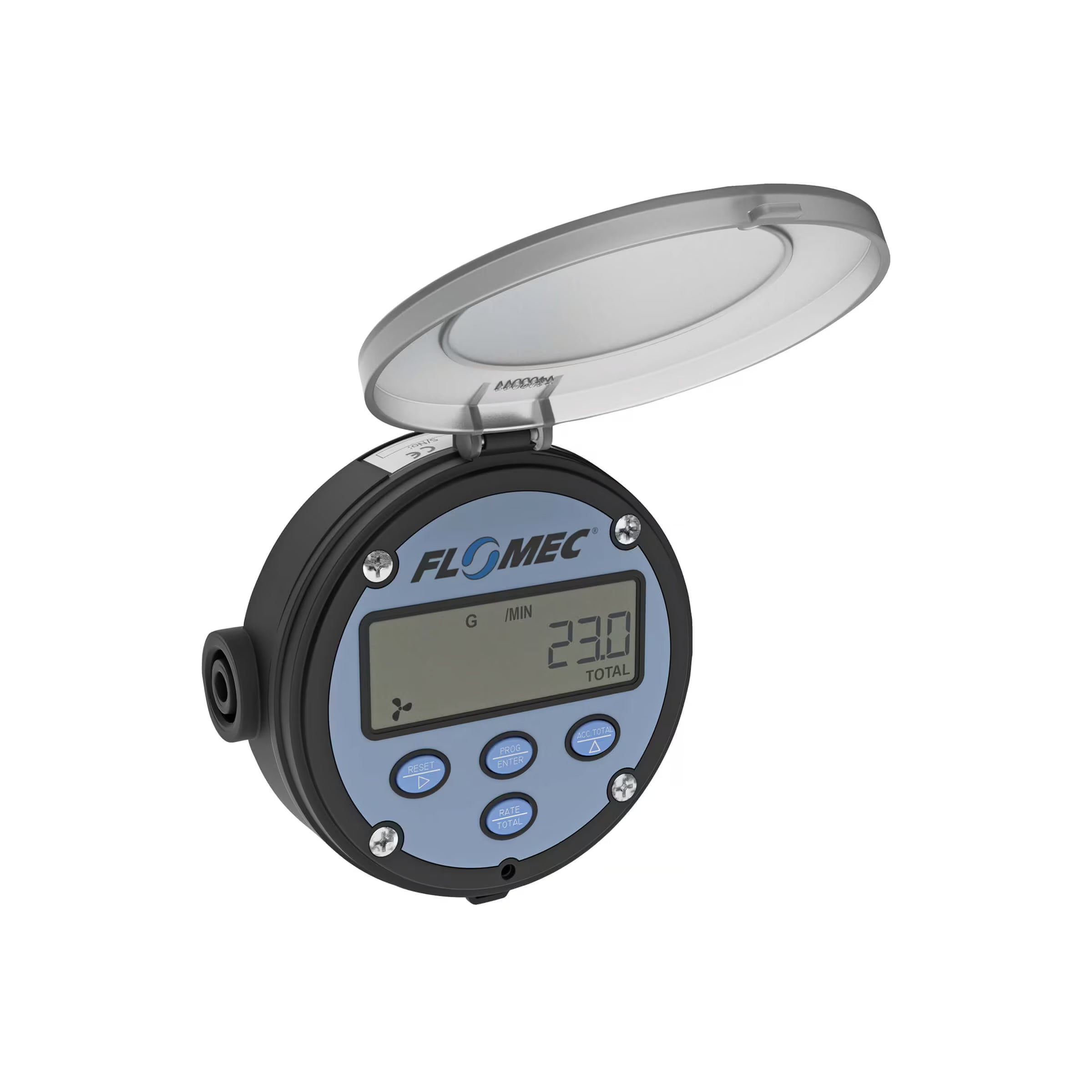

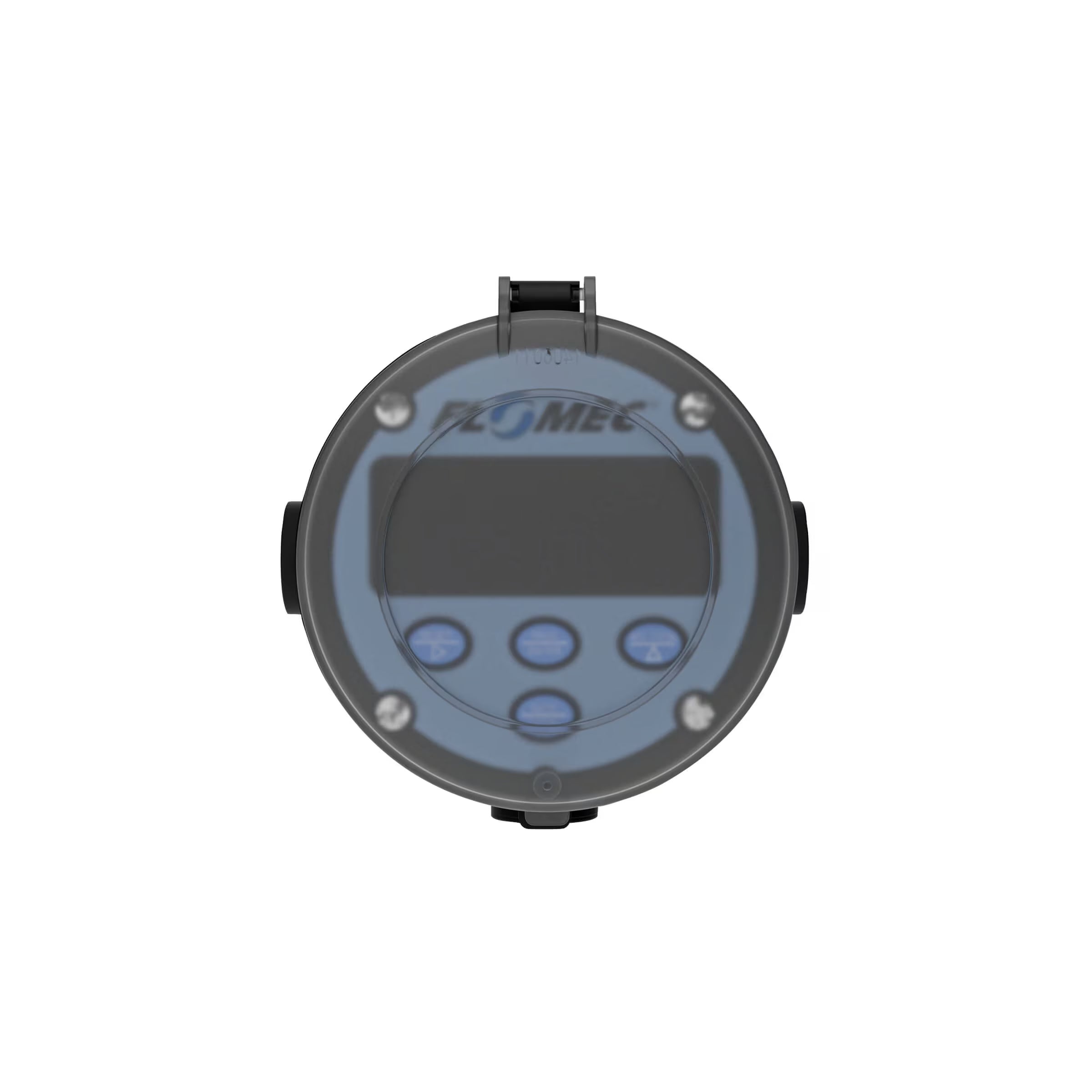

RT14 Nylon (GRN composite) Transmitter with Built-In Digital Display. Integral Meter Mount. Safe Area Only.
The FLOMEC LCD display RT14 is a fully programmable self-powered flow rate totalizer specifically designed for computing and displaying flow rates and totals. The instrument displays resettable (batch) total, accumulated total, and instantaneous flow rates in engineering units as programmed by the user. Flow meter inputs: Accepts discrete inputs (reed switch, NPN, or PNP), low amplitude sine wave, or a voltage pulse (Wiegand).
CONTROL OUTPUTS: This four-button design can provide an externally powered analog output, plus a discrete output (scaled and unscaled) or high/low alarms for easy connection to a variety of chart recorders, display equipment, and process control equipment.
PROGRAMMING: Simple PIN-protected flow chart programming with English prompts guides you through the programming routine greatly reducing the need to refer to the instruction manual.
