FLOMEC 1/2 inch Turbine PVC Spigot Flow Meter with Digital Display, TM05SQ9GMA.
Product information graphic for the 1/2 inch Turbine PVC Spigot Flow Meter with Digital Display.
Product information graphic for the 1/2 inch Turbine PVC Spigot Flow Meter with Digital Display.
Product information graphic for the 1/2 inch Turbine PVC Spigot Flow Meter with Digital Display.

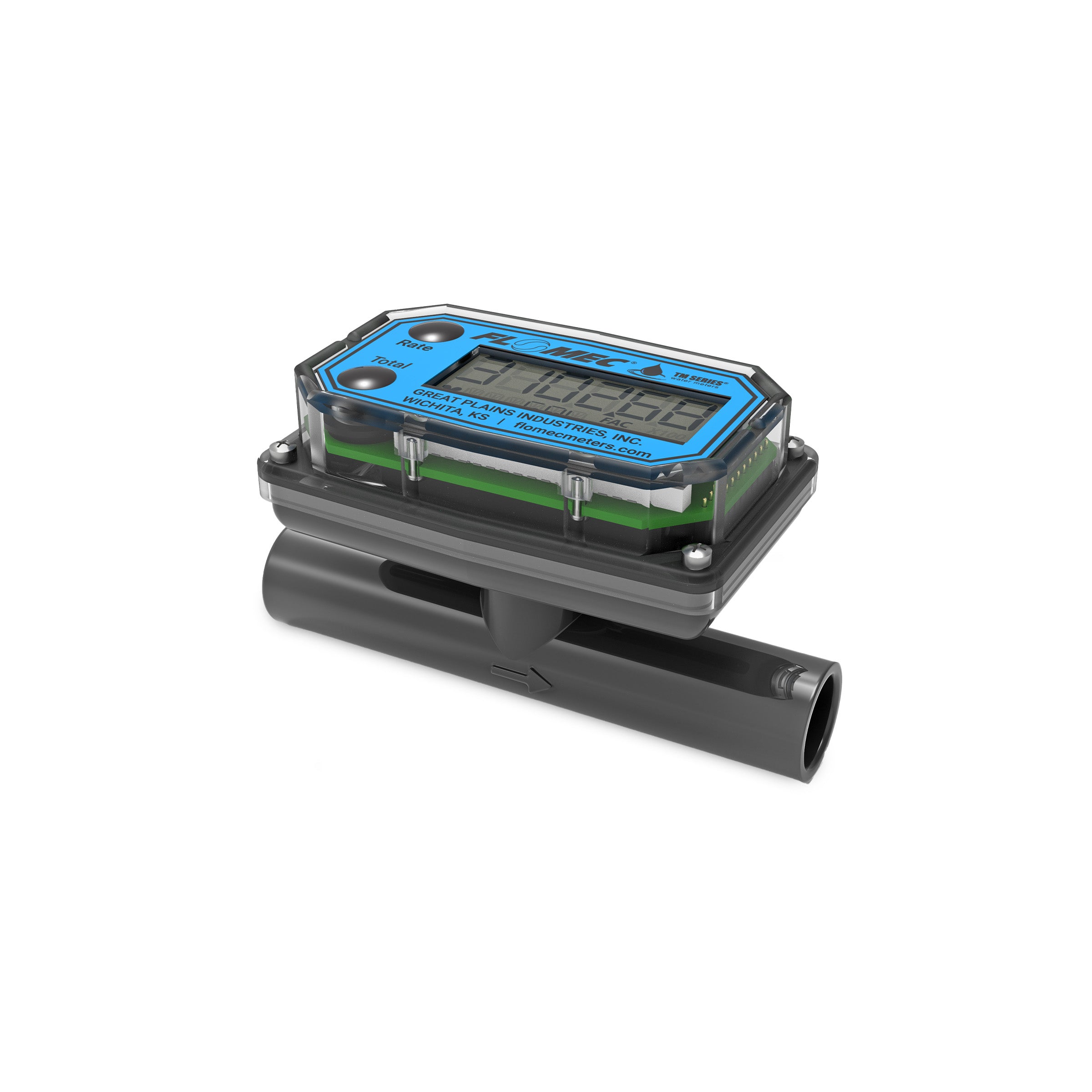

1/2" Turbine PVC Spigot Flow Meter with Digital Display
1/2" Turbine PVC Spigot Flow Meter with Digital Display
1/2" Turbine PVC Spigot Flow Meter with Digital Display
1/2" Turbine PVC Spigot Flow Meter with Digital Display

1/2-inch PVC Flow Meter with Spigot Fittings. Q9 Digital Display. For clean fluids, groundwater, and water.

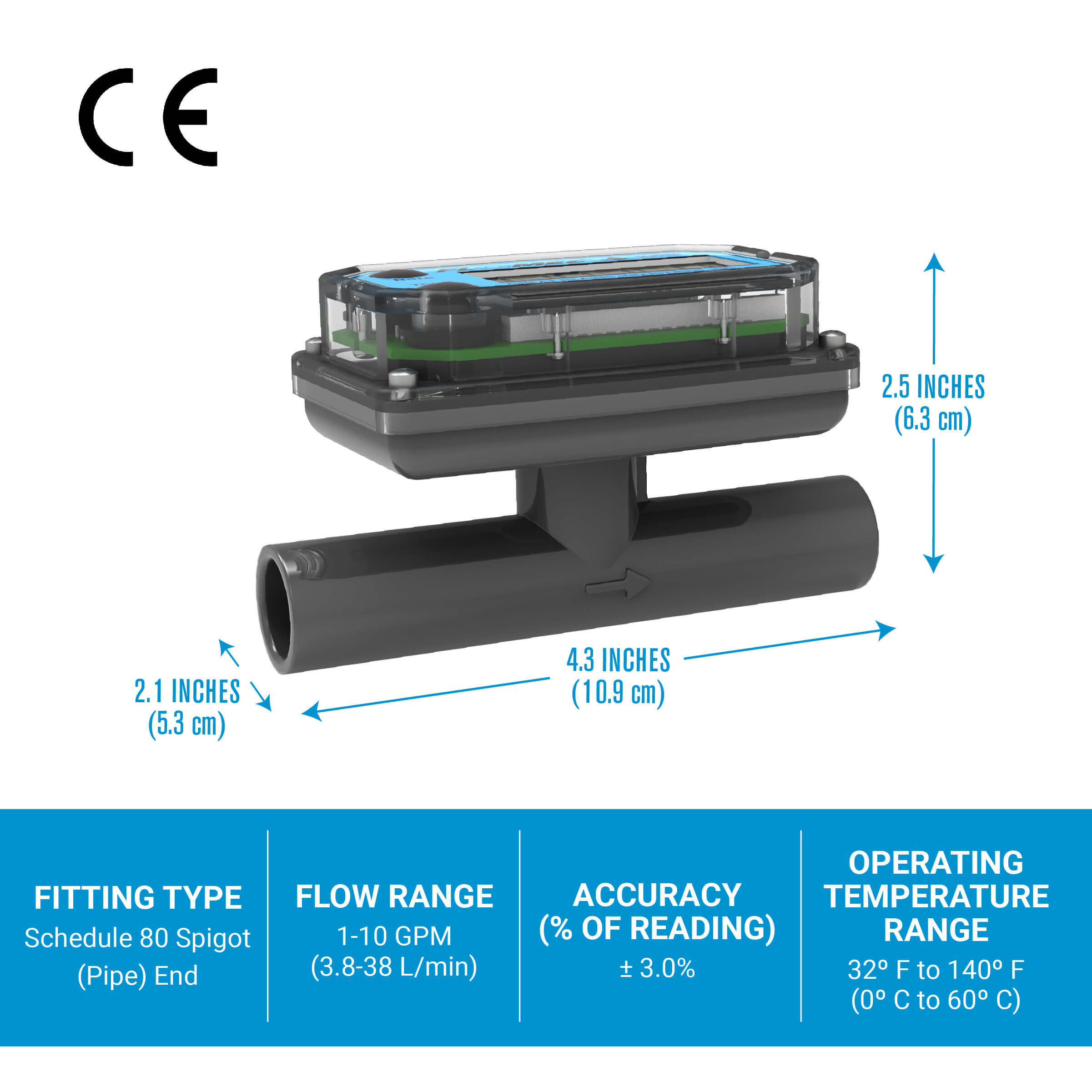

The FLOMEC TM Series is constructed of Schedule 80 PVC for a long-lasting solution exceeding flow measurement requirements. It’s one of the most versatile turbine meters in the industry with fitting types that allow you to customize the meter to your application needs.

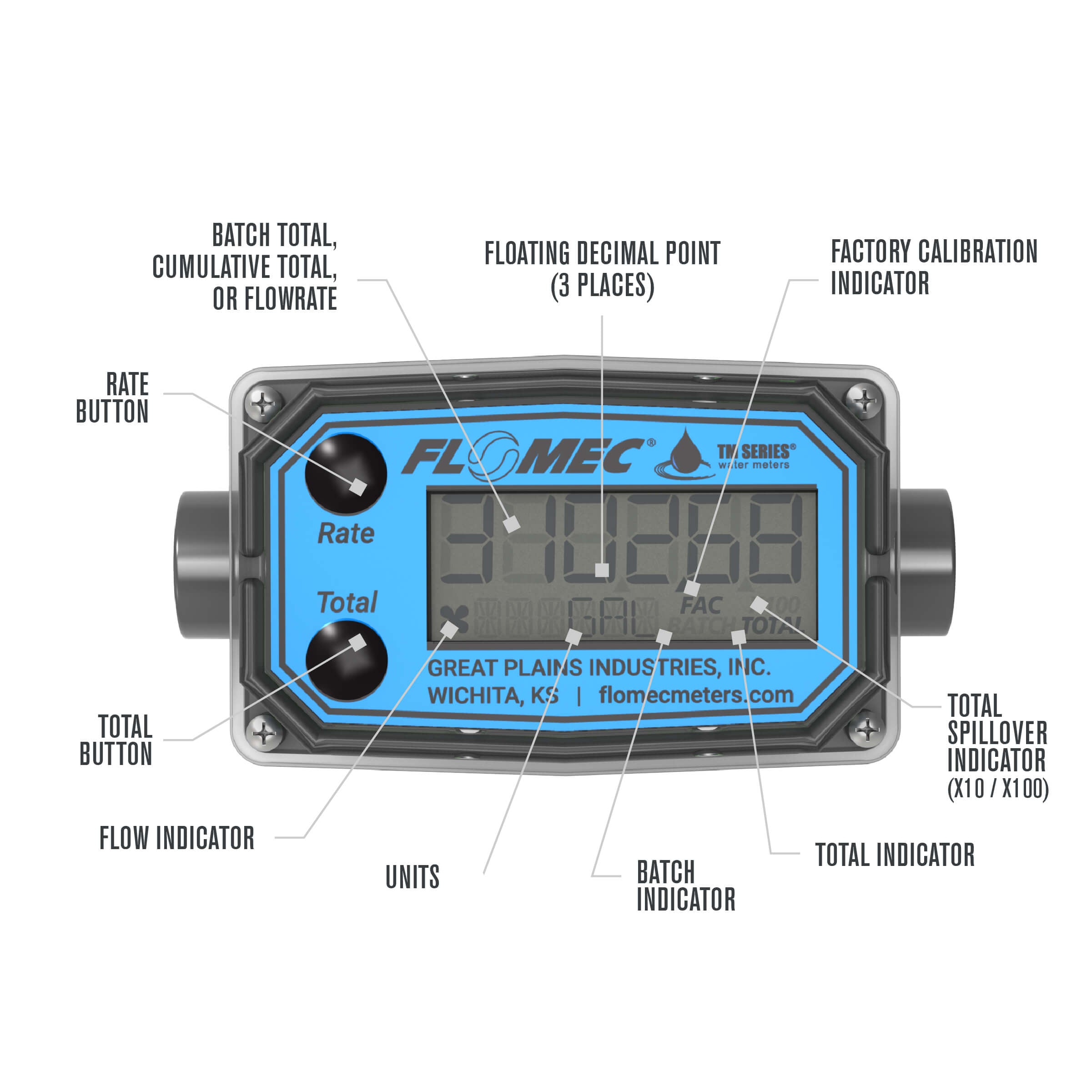

Q9 Digital Display: Battery-powered two button digital display has 11 pre-programmed units of measure plus 1 custom option.

Optional: Use the 4-20mA Output Module (125100-10) as a digital display add-on to provide an industry-standard analog output along with a discrete output for connection to a variety of chart recorders, display equipment, and process control equipment. See specifications for performance details.

NOTE: The 4-20mA Output Module is not FM Approved. Therefore, using these options with an approved metering system voids FM Approval.

FLOMEC® TM Series

1/2" Turbine PVC Spigot Flow Meter with Digital Display

SKU: TM05SQ9GMA | MODEL: TM-05-S-Q

$428.00
/
APPROVALS:
CE
FOR USE WITH THESE FLUIDS:
Clean Fluids | Groundwater | Water
IN STOCK – Ships in 1-2 business days

TM Parts & Accessories

SHOP THE COLLECTION
4-20mA Output Module for Turbine Flow Meters
4-20mA Output Module for Turbine Flow Meters

4-20mA Output Module for Turbine Flow Meters

125100-10
$521.00
Q9 Replacement Display for 2" TM Series

Q9 Replacement Display for 2" TM Series

TM20XR9GMA
$365.00
FM Approved Remote Display Kit for Turbine Flow Meters, Hazardous Area Approved
FM Approved Remote Display Kit for Turbine Flow Meters, Hazardous Area Approved

FM Approved Remote Display Kit for Turbine Flow Meters, Hazardous Area Approved

113275-10
$391.00
Q9 Replacement Display for 1-1/2" TM Series

Q9 Replacement Display for 1-1/2" TM Series

TM15XR9GMA
$365.00
2-Button Plastic Cover for Q9 Display

2-Button Plastic Cover for Q9 Display

906014-07
$52.00
Q9 Replacement Retrofit Coil Kit

Q9 Replacement Retrofit Coil Kit

125526-01
$78.00
90-degree Adapter Kit for Q9 Display
90-degree Adapter Kit for Q9 Display

90-degree Adapter Kit for Q9 Display

125260-02
$78.00
Q9 Replacement Display for 3" TM Series

Q9 Replacement Display for 3" TM Series

TM30XR9GMA
$365.00
Conditioned Signal Output Module for Turbine Flow Meters
Conditioned Signal Output Module for Turbine Flow Meters

Conditioned Signal Output Module for Turbine Flow Meters

113435-10
$391.00
  • 5 stars: 2 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
M
Matt Vohlken
Takes the guessing out

Makes life easy and takes the guessing or looking at the side of the tank wondering how much is in there. Works great for low volume per acre applications (2gpa).

Thank you for the great feedback, Matt! We enjoy hearing about customer's use applications.

A
Arlan McKee
Great Flow meter

I install these in laboratory RO and deionized water systems to monitor filter and resin bed longevity. I installed the first one about 8 years ago and haven't even had to replace the battery yet. Excellent product.

Hi Arlan,
We are thrilled to know your TM meter is still working well. Thank you for your great review!

- Laura S.

J
Joe Pacana

SKU TM20NQ9GMB | MODEL TM-20-N-Q

Is this meter intrinsically safe?

Customer

Hello Joe,

The TM series meters are not intrinsically safe. Please feel free to contact our Product Support Team at 1-800-835-0113 (Mon. - Fri., 8am-5pm (CST)), if you have further questions of this nature or to discuss what we might have to meet your application needs.

Thank you, have a great day!
Great Plains Industries

R
Ragnar Miller

Can you replace a dead battery in a MODEL TM-10-N-Q?

Customer

Hello,

Yes, the TM-10-N-Q ships with alkaline batteries that can be replaced with either alkaline or non-rechargeable lithium AAA batteries. If you need assistance with this, our product support team can be reached at 1-800-835-0113 Monday-Friday 8am-5pm CST.

Thank you,
GPI
