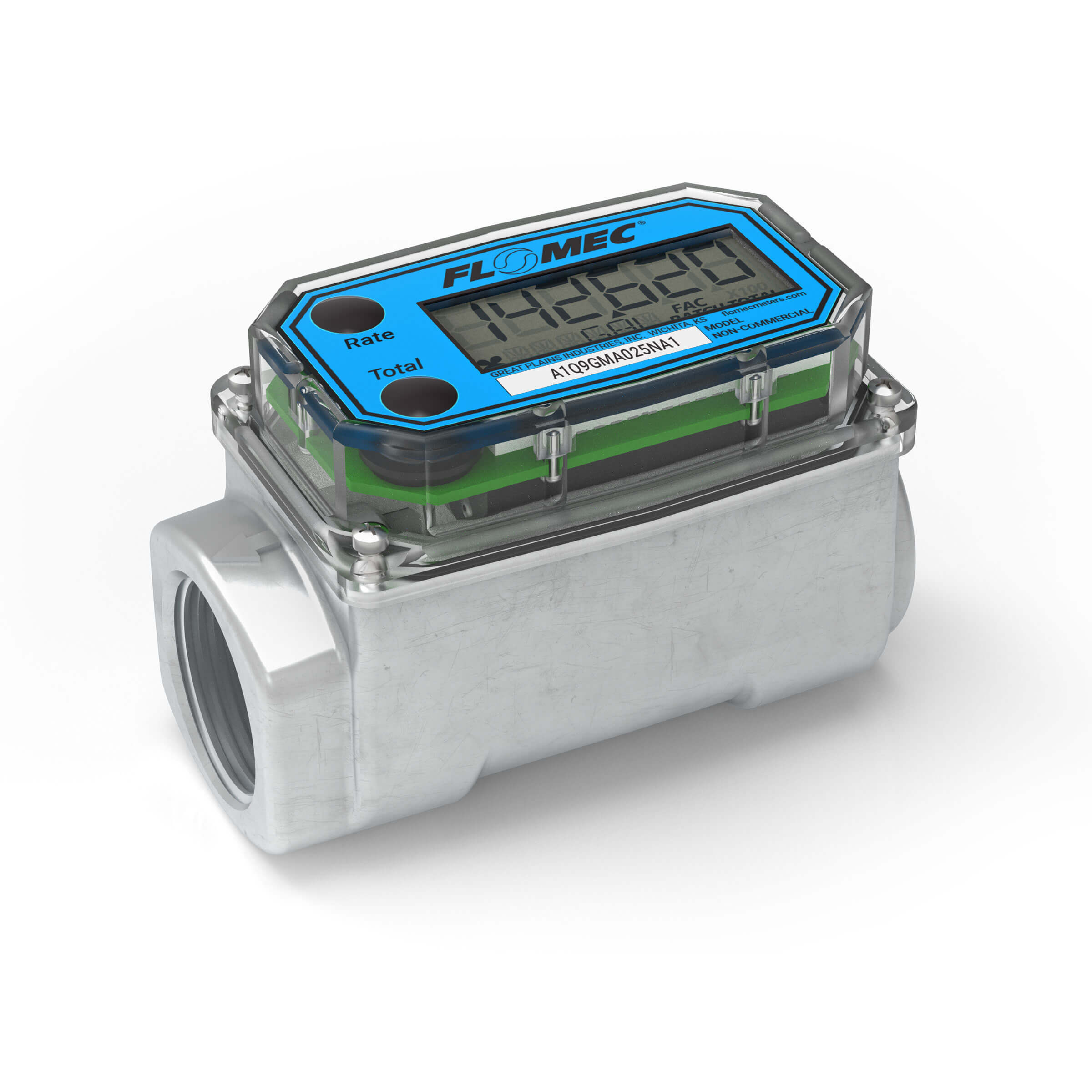

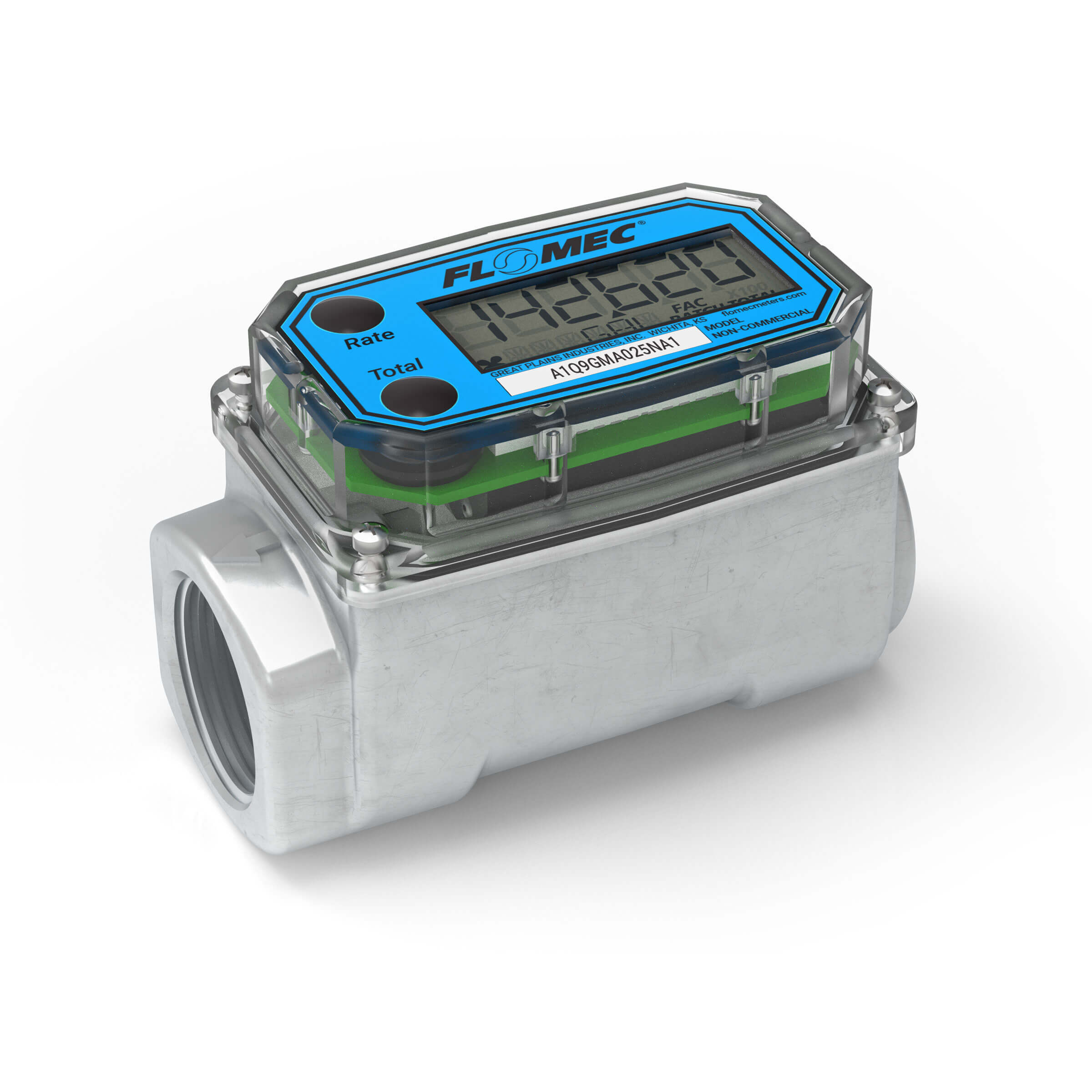

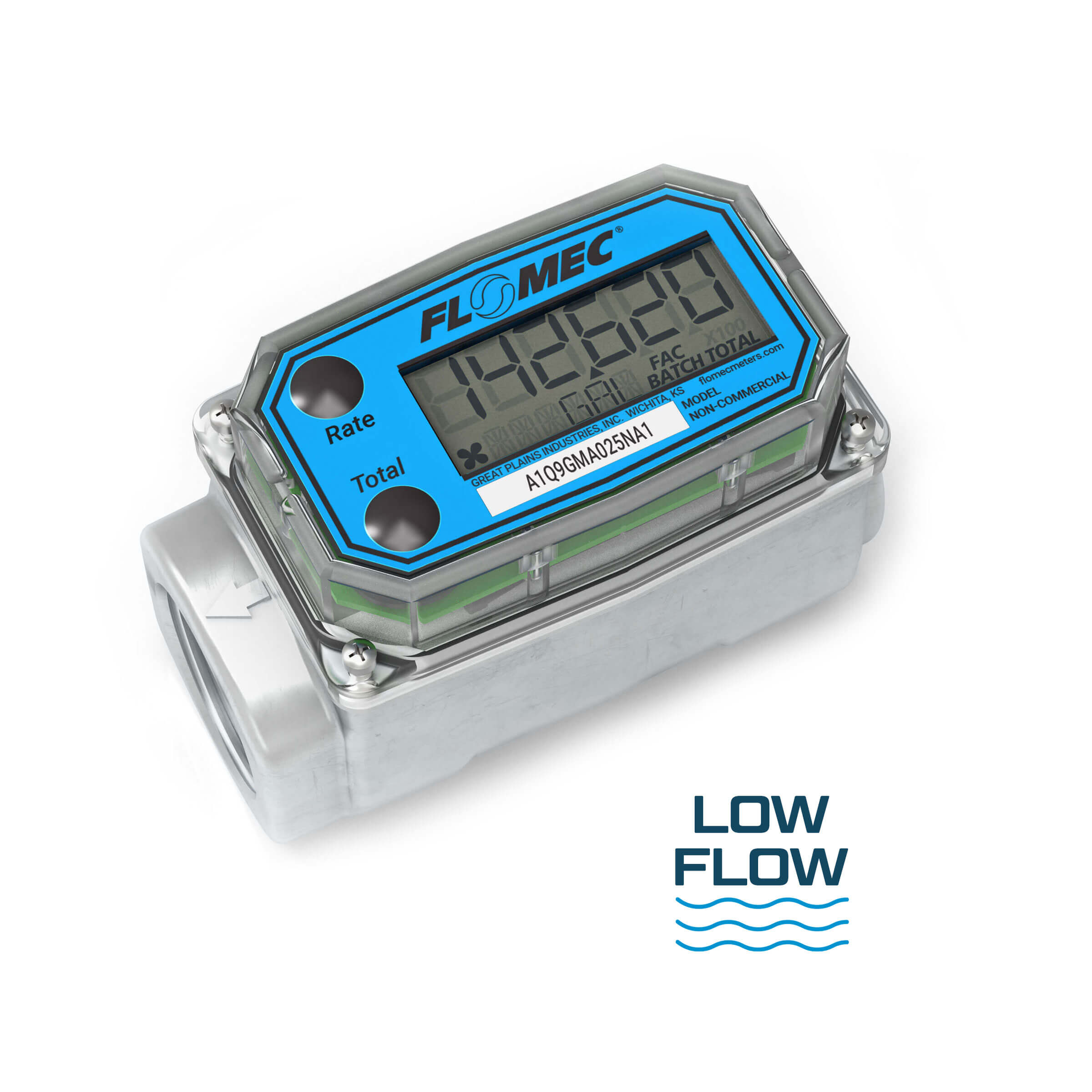

1-inch Low Flow Aluminum Flow Meter with NPT Fittings. Q9 Digital Display with Transmitter. For fuel and thin petroleum-based fluids.
The FLOMEC A1 Paddlewheel Flow Meter series with Q9 Display is designed as a self-contained, battery-powered unit. The factory 3-point calibration process ensures accuracy of reading across the flow ranges.
Flow meter: For low flow applications: 0.3 - 3 GPM (1 to 11 L/min). Accuracy can vary up to ± 5% depending on installation and fluid type. Field calibration is recommended for best accuracy. Lightweight, compact design allows for easy installation. NPT fittings.
Q9 Digital Display: Battery-powered display has 11 pre-programmed units of measure plus 1 custom option.
Optional: Use the 4-20mA Output Module (125100-10) as a digital display add-on to provide an industry-standard analog output along with a discrete output for connection to a variety of chart recorders, display equipment, and process control equipment. See specifications for performance details.
NOTE: The 4-20mA Output Module is not FM Approved. Using this option with an approved metering system voids FM Approval.
